80KHz Φ22mm underwater horizontal omnidirectional transducer
Applications:
underwater information transmission, underwater sound sourcing, under water range detection, level measurement etc
Features:
*Rugged sealed contruction
*Cylindrical design for easy installation
Technical parameter:

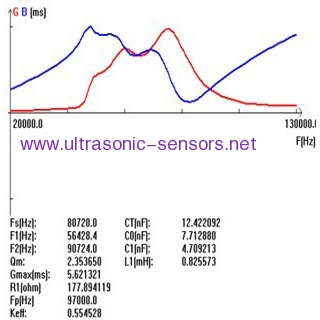

Center Frequency: 80 ± 3KHz
Detectable range: 30 m
Mini. parallel Resistance: 200 Ω ± 20%
Capacitance: 12000pF ± 20% @1KHz
Echo Sensitivity: 180mV echo amplitude @1.6m, under 400Vpp
Working Voltage: Crest voltage < 600Vpp
Working temperature: -40 ~ +80℃
Pressure: ≤3Kg or 0.3MPa
Angle: horizontal omnidirection
Housing Material: POM
Corrosion Resistance: can be used under the environment of weak acid or weak base
Installation dimensions: 22mm
Protection class: IP68
Wiring instructions: contact for more details
