35KHz Φ46mm underwater horizontal omnidirectional transducer
Applications:
underwater information transmission, underwater sound sourcing, under water range detection, level measurement etc
Features:
*Rugged sealed contruction
*Cylindrical design for easy installation
Technical parameter:

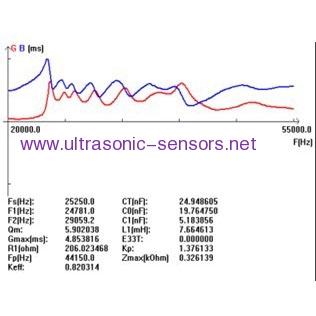

Center Frequency: 35 ± 7.5KHz
Detectable range: 500 m
Mini. parallel Resistance: 200 Ω ± 20%
Capacitance: 20pF ± 20% @1KHz
Echo Sensitivity: 250mV echo amplitude @1.6m, under 400Vpp
Working Voltage: Crest voltage < 600Vpp
Working temperature: -40 ~ +80℃
Pressure: ≤3Kg or 0.3MPa
Horizontal angle: omnidirection
Vertical angle: Half-power angle @-3dB: 37° ± 3, sharp Angle: 96° ± 4
Housing Material: POM
Corrosion Resistance: can be used under the environment of weak acid or weak base

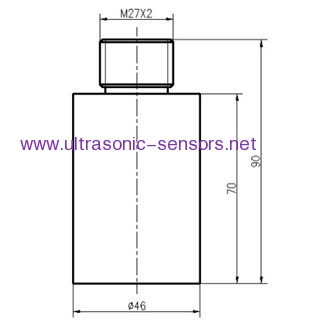

Installation dimensions: M27*2
Protection class: IP68
Wiring instructions: contact for more details
