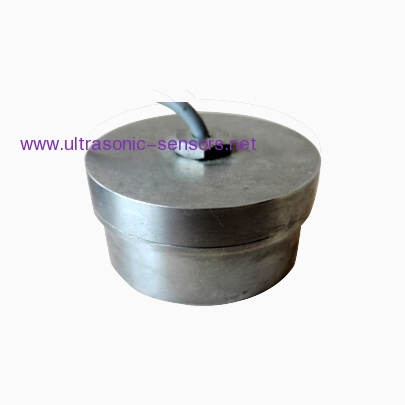

12KHz Φ47mm underwater ultrasonic acoustic transducer
Applications:
underwater information transmission, underwater sound sourcing, under water range detection, level measurement etc
Features:
*Rugged sealed contruction
*Cylindrical design for easy installation
Technical parameter:
Center Frequency: 12 ± 1KHz
Detectable range: 500 m
Mini. parallel Resistance: 2200 Ω ± 20%
Capacitance: 2900pF ± 20% @1KHz
Echo Sensitivity: 1500mV echo amplitude @0.6m, under 200Vpp
Working Voltage: Crest voltage < 600Vpp
Working temperature: -40 ~ +80℃
Pressure: ≤3Kg or 0.3MPa
Angle: 180°
Housing Material: steel
Corrosion Resistance: can be used under the environment of weak acid or weak base

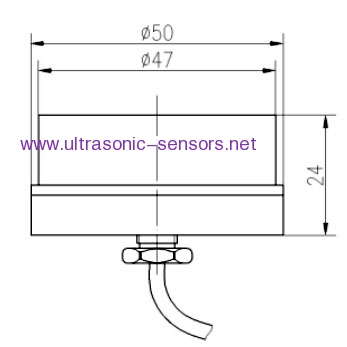

Installation dimensions: 50mm
Protection class: IP68
Wiring instructions: contact for more details
