200KHz underwater 11 wave-beam ultrasonic topography scanning transducer
Applications:
Ultrasonic flow meter, under water range detection, level measurement etc
Features:
*Rugged sealed contruction
*Flat design for easy installation
Technical parameter:
Center Frequency: 200 ± 5 KHz
Detectable range: 0.6 ~ 120 m
Mini. parallel Resistance: 600 Ω ± 20%
Capacitance: 9000pF ± 20% @1KHz
Echo Sensitivity: 700mV echo amplitude @0.6m, under 200Vpp
Working Voltage: Crest voltage < 600Vpp
Working temperature: -40 ~ +80℃
Pressure: ≤3Kg or 0.3MPa
Angle: Half-power angle @-3dB: 6° ± 1, Sharp Angle: 14° ± 4
Housing Material: POM
Corrosion Resistance: can be used under the environment of weak acid or weak base

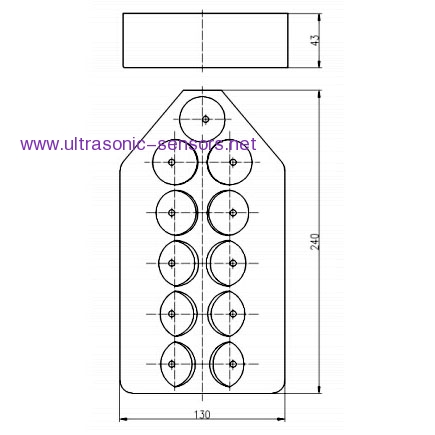

Installation dimensions: see layout
Protection class: IP68
Wiring instructions: contact for more details
