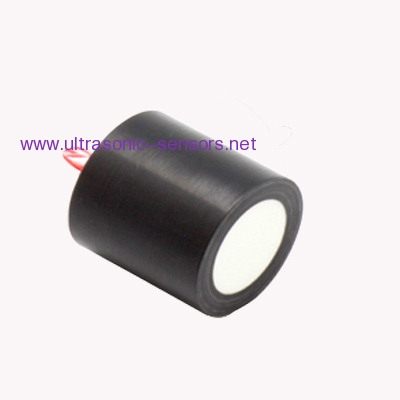

125KHz Φ25mm dual use waterproof ultrasonic transducer
Applications:
People Detection
Automated Store Displays
Booths & Kiosks
Lithium Battery Applications
Solar Powered Applications
Remote Monitoring Stations
Non-Contact Detection
Shipping systems
Mobile Robotics
Chemically Hazardous Locations
Tank Level Measurement
Freight Management Systems
Liquid Level Control
Tide/Water Level Monitoring
Dimensioning & Positioning
Proximity Detection
Security Systems
Features:
*Rugged sealed contruction
*Cylindrical design for easy installation
*Short-range measuring capability
Technical parameter:
Construction: waterproof
Using Method: dual use
Center Frequency: 125 ± 5.0KHz
Sensitivity: -60 dB min.
Capacitance: 1200pF ± 20% at 1KHz
Directivity: 14 ± 2 degree
Max. input voltage: 500Vp-p
Detectable range: 0.2 ~4m
Protection class: IP65
Housing Material: aluminium
