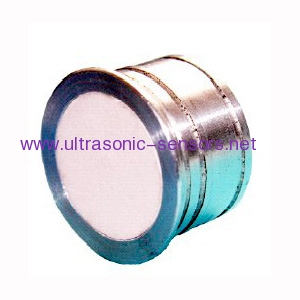

105KHz Φ27mm waterproof ultrasonic transducer
Applications:
Lithium Battery Applications
Solar Powered Applications
Remote Monitoring Stations
Non-Contact Detection
Shipping systems
Mobile Robotics
Chemically Hazardous Locations
Tank Level Measurement
Freight Management Systems
Liquid Level Control
Tide/Water Level Monitoring
Dimensioning & Positioning
Proximity Detection
Security Systems
Gas flow meter
Features:
*Rugged sealed contruction
*Cylindrical design for easy installation
*Short-range measuring capability
Technical parameter:
Construction: waterproof
Using Method: dual use

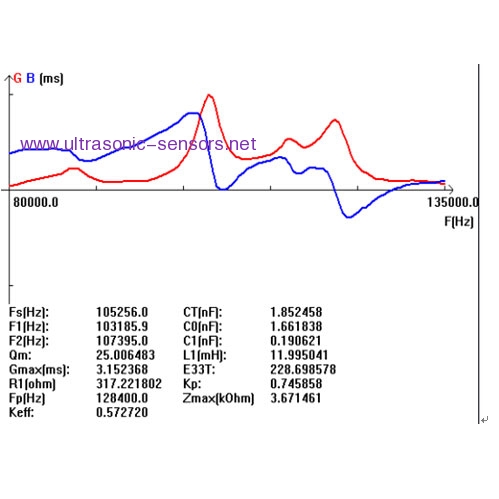

Center Frequency: 105 ± 5KHz
Mini. Resistance: 600Ω ± 20%
Capacitance: 1800pF ± 20% @1KHz
Sensitivity: Ehco signal 160mV @0.6m, 800Vpp
Max. Input Voltage: 800Vpp
Working temperature: -40 ~ + 80℃
Pressure: ≤3Kg or 0.3MPa
Angle: (beam width) Half-power angle@-3dB: 9° ± 2, Sharp Angle: 21° ± 4
Detectable range: 0.15 ~ 3m
Protection Class: IP68
Housing Material: aluminum
Corrosion Resistance: can be used under the environment of weak acid or weak base

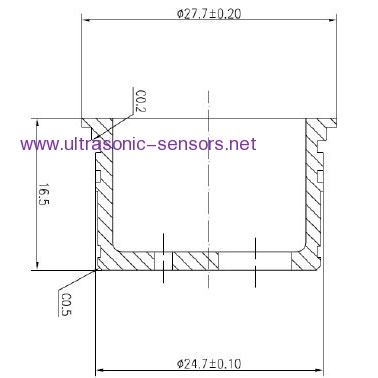

Installation dimensions: 24.2mm
Gross weight: 17g ± 5%
