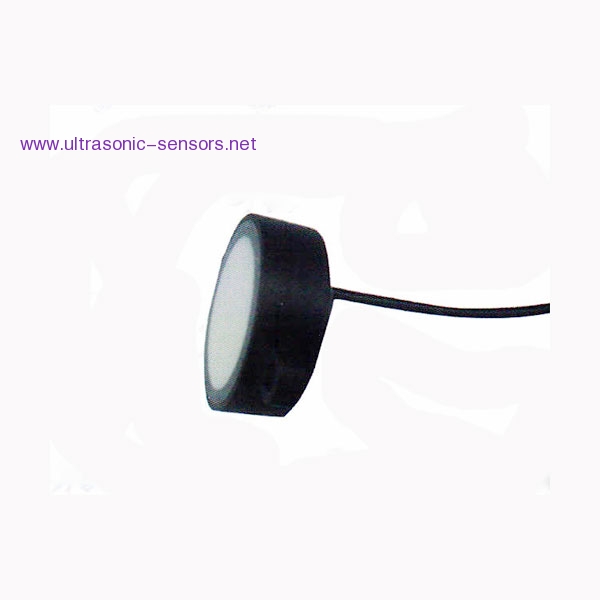

200KHz Φ25mm dual use waterproof ultrasonic transducer
Applications:
People Detection
Automated Store Displays
Booths & Kiosks
Lithium Battery Applications
Solar Powered Applications
Remote Monitoring Stations
Non-Contact Detection
Shipping systems
Mobile Robotics
Chemically Hazardous Locations
Tank Level Measurement
Freight Management Systems
Liquid Level Control
Tide/Water Level Monitoring
Dimensioning & Positioning
Proximity Detection
Security Systems
Features:
*Waterproof and dual use
*Compact and light weight
*High sensitivity and sound pressure
*Less power consumption
*High reliability
Technical parameter:
Construction: waterproof
Using Method: dual use
Center Frequency: 200 ± 8.0KHz
Sensitivity: ≥1.2V (driver signal: 400Vp-p, 200KHz, at 30cm)
Capacitance: 900pF ± 25% at 1KHz
Directivity: ≤14 degree
Max. input voltage: 500Vp-p
Detectable range: 0.1 ~2m
Protection class: IP65
Housing Material: plastic
