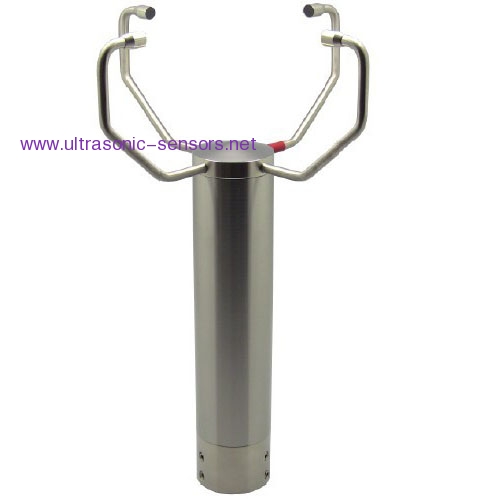

0~60m/s ultrasonic wind sensors
Applications
● City environmental monitoring
● Wind power generation
● Weather monitoring
● Bridges, tunnels
● Sailing ship
● Airports etc
Technical parameter
Wind speed
Measuring range: 0~60 m/s
Accuracy: ± 0.2m/s (Wind speed: within 0~5m/s)
<measured value’s 2%(Wind speed: >5m/s)
Resolution: 0.01 m/s
Wind direction
Measuring range: 360°around, non~blind area
Accuracy: ± 2°
Resolution: 1°
General parameter

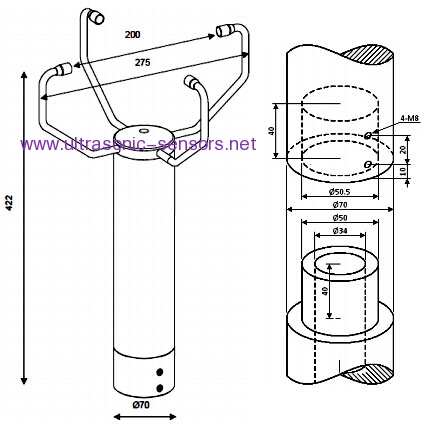

Dimension: H400 ×W265mm
Net Weight: 2.5kgs
Protection level: IP66
Temperature range: -40°C ~ +70°C
Humidity range: R 5%~100%
Ice resistance: refer to MILSTD810E
Corrosion resistance: After 3 months of salt spray and condensation test, no corrosion
Dust~proof: refer to MILSTD810E
EMC: IEC61000-4-5
Power Work Power: DC24V/60mA
Heater Power: DC24V/5A
Output signal
Digital signal: RS 485
Baud rate: 9600
Analogue signal: 4~20mA
Output frequency: 15 times /second
