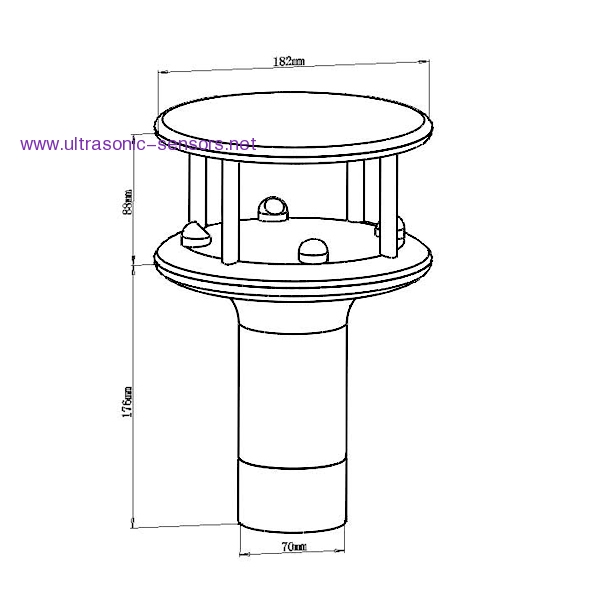

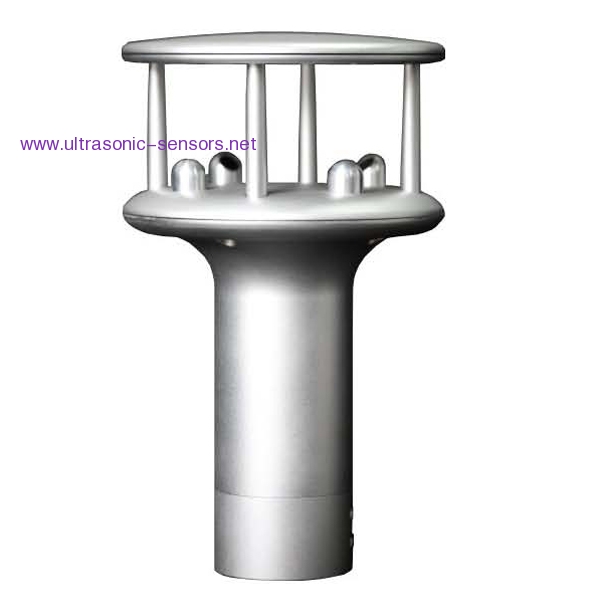

0~60m/s ultrasonic Anemometer
Applications
● City environmental monitoring
● Wind power generation
● Weather monitoring
● Bridges, tunnels
● Sailing ship
● Airports etc
Technical parameter
Power supply
Work power supply: 24V±20% / 0.2A
Heating power supply (option): 24V±20% /8A
Wind speed
Measuring range: 0~60 m/s
Accuracy: <=10m/s : ±0.2m/s
> 10m/s: <±2% (FS)
Resolution:
NMEA protocol: 0.1m/s
other protocol: 0.01m/s
Wind direction
Measuring range: 0°~360°
Accuracy: ±1°
Resolution: 0.1°
Temperature
Measuring range: -40~60°C
Accuracy: ±3°C
Resolution: 0.1°C
Output mode
Digital signal: RS 485 or RS 422
Analogue signal: 4~20mA
Communication protocol: NMEA0183. WIMVW or Modbus
Operation environment
Storage temperature: -50~80°C
Working temperature: -40~60°C
Protection type: IP66
