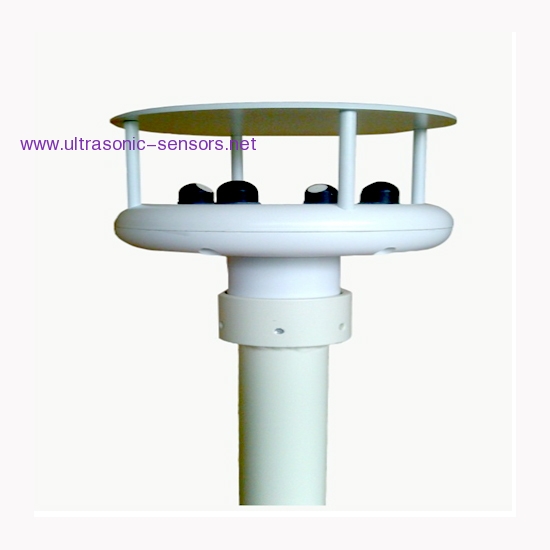

0~54m/s Wind sensors
Applications
● City environmental monitoring
● Wind power generation
● Weather monitoring
● Bridges, tunnels
● Sailing ship
● Airports etc
Technical parameter
Wind speed | Measure range | 0-54m/s |
Accuracy | ±2% | |
Resolution | 0.01m/s | |
Wind direction | Measure range | 0 ~ 359° |
Accuracy | ±3° | |
Resolution | 1° | |
Digital output | RS232 OR RS485 | |
Communication protocol | Modbus-ASCII | |
Baud rate | 9600 | |
Protection type | IP65 | |
Working temperature | -35℃ - +70℃ | |
Storage temperature | -40℃ - +80℃ | |
Working humitity | 0 - 100% | |
Power supply | 12VDC | |
Power consumption | 1W | |

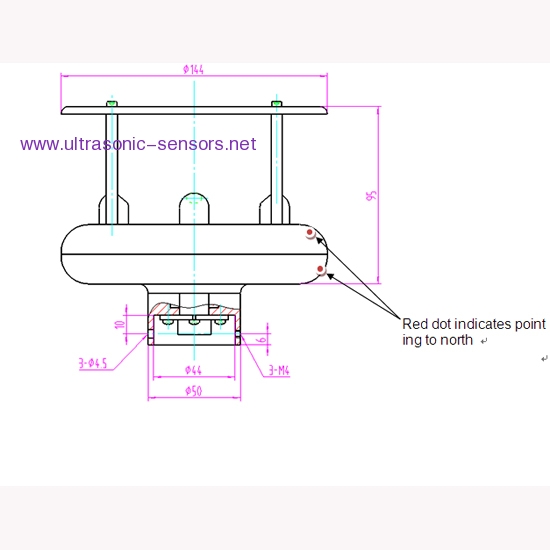

Dimension/weight | Φ148×138mm / 0.78kg | |
Housing materials | ABS or Metal | |
