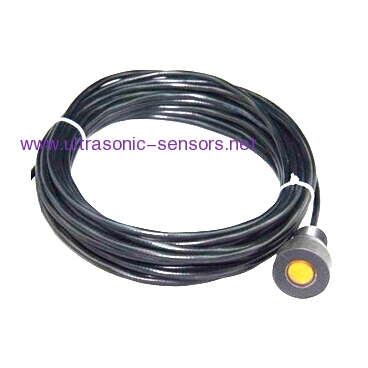

650KHz Φ42mm ultrasonic silt level transducer
Applications:
Silt level measurement, under water range detection, level measurement etc
Features:
*Rugged sealed contruction
*Cylindrical design for easy installation
Technical parameter:

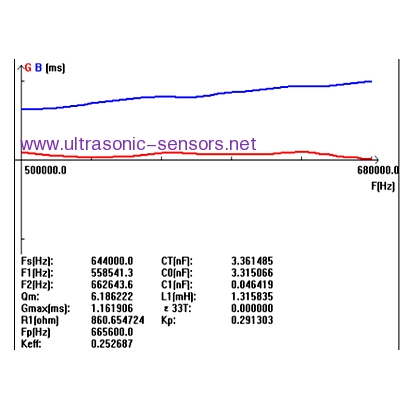

Center Frequency: 650 ± 30KHz
Detectable range: 3 m
Mini. parallel Resistance: 600 Ω ± 20%
Capacitance: 9000pF ± 20% @1KHz
Echo Sensitivity: 700mV echo amplitude @0.6m, under 200Vpp
Working Voltage: Crest voltage < 600Vpp
Working temperature: -40 ~ +80℃
Pressure: ≤3Kg or 0.3MPa
Angle: Half-power angle @-3dB: 6.8° ± 1, Sharp Angle: 16.1° ± 2
Housing Material: POM
Corrosion Resistance: can be used under the environment of weak acid or weak base

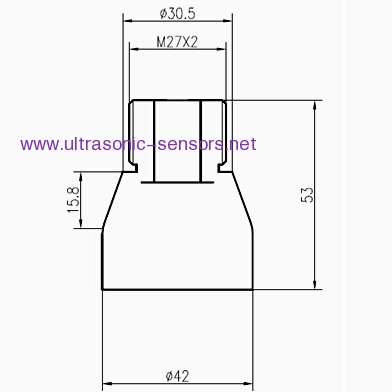

Installation dimensions: 28.6mm
Protection class: IP68
Wiring instructions: contact for more details
