1MHz Φ29mm ultrasonic plug-in pipe flow meter transducer
Applications:
Ultrasonic flow meter, under water range detection, liquid concentration and density measurement etc
Features:
*Rugged sealed contruction
*Cylindrical design for easy installation
Technical parameter:

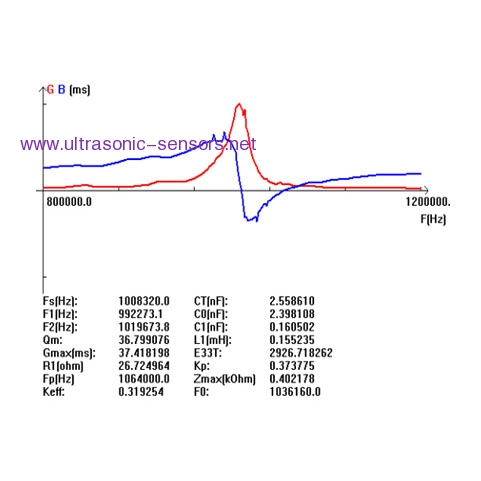

Center Frequency: 1M ± 30KHz
Detectable range: 0.1 ~ 3m
Mini. parallel Resistance: 30 Ω ± 20%
Capacitance: 2500pF ± 20% @1KHz
Echo Sensitivity: 700mV echo amplitude @0.6m, under 200Vpp
Working Voltage: Crest voltage < 600Vpp
Working temperature: -40 ~ +80℃
Pressure: ≤3Kg or 0.3MPa
Angle: Half-power angle @-3dB: 6° ± 1, Sharp Angle: 14° ± 4
Housing Material: POM
Corrosion Resistance: can be used under the environment of weak acid or weak base
Installation dimensions: 29mm
Protection class: IP68
Wiring instructions: contact for more details
