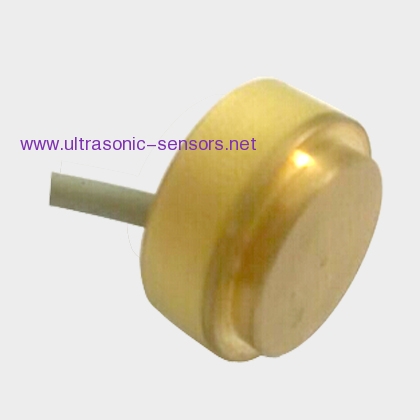

1MHz Φ21mm ultrasonic thermal flow meter transducer
Applications:
Ultrasonic flow meter, under water range detection etc
Features:
*Rugged sealed contruction
*Cylindrical design for easy installation
Technical parameter:

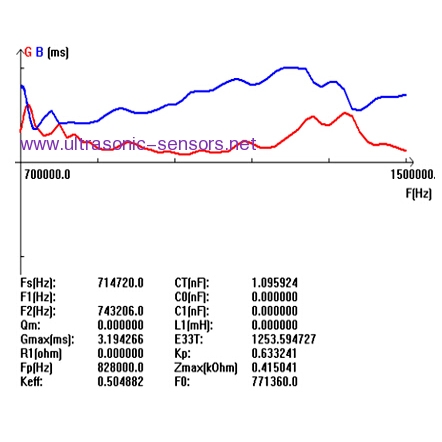

Center Frequency: 1M ± 30KHz
Detectable range: 0.1 ~ 1m
Mini. parallel Resistance: 50 Ω ± 20%
Capacitance: 1200pF ± 20% @1KHz
Echo Sensitivity: 500mV echo amplitude @0.3m, under 200Vpp
Working Voltage: Crest voltage < 600Vpp
Working temperature: -40 ~ +80℃
Pressure: ≤3Kg or 0.3MPa
Angle: Half-power angle @-3dB: 7° ± 1, Sharp Angle: 16° ± 4
Housing Material: brass
Corrosion Resistance: can be used under the environment of weak acid or weak base

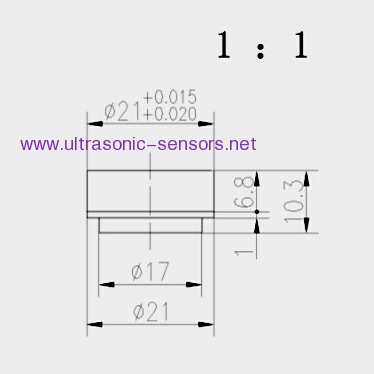

Installation dimensions: 21mm
Protection class: IP68
Wiring instructions: contact for more details
