Visible parking sensor system
Applications:
It is used for car / truck for parking.
Technical parameter:
Constitues:

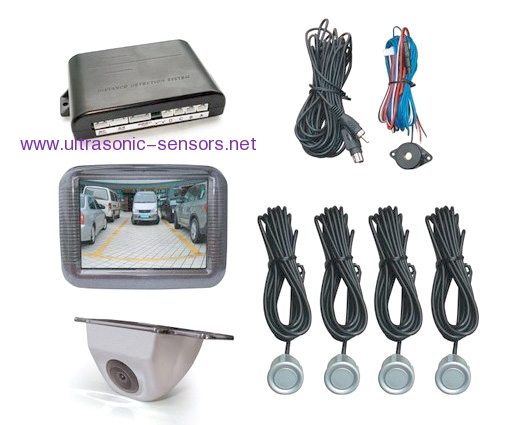

1 control box, 4 sensors, 1 camera, 1 TFT monitor, 1 buzzer, a string power lines
Function :
A. audible indication
(1) 1.50m—0.80m: Bi, Bi, Bi
(2) 0.80m—0.40m: Bi, Bi, BiBi (the closer, the faster)
(3) 0.40m—0.00m: BiBi… (continuous beeping)
B. visual indication
(1) 2.50m—0.30m: the objects will be shown distinctly on screen, and it will indicate the distance between the objects and vehicle meanwhile display the image of the obstacle.
(2) 0.30m—0.00m: display 000 and must stop
(3) Flashing arrow on left or right indicates the orientation of objects
Specification :
Working voltage: (1)10V ~ 15V; (2)24V
Working current: ≤ 200mA
Max Power: ≤ 4W
Ultrasonic frequency: 40KHz
Working temperature: -30℃ ~ +70℃
Alarming volume: ≥85dB
Alarming distance:1.50—0.10m
Display distance: 2.50—0.30m
Image sensor: CMOS 1030
TV system: NTSC/PAL
Horizontal resolution: 420 line
Effective pixels: N:510×496pixels / P:628×586pixels
Lens angle: 170°
Sync model: Internal sync
Lens: F:3.6mm/2.8mm
