Ultrasonic level sensors
Applications:
It is mainly used in mine, steel mill, waterworks etc
Technical parameter:

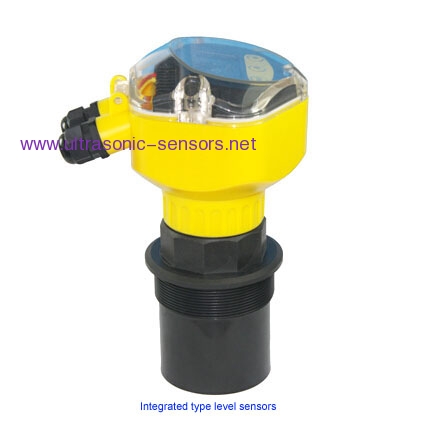

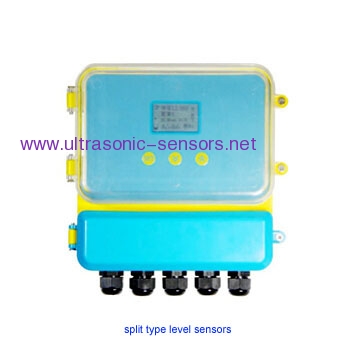

Function | Integrated type | Split type |
Range | 5m、10m、15m、20m、30m、40m、50m、60m | 5m、10m、15m、20m、30m、40m、50m、60m、70m、 |
Accuracy | 0.25% - 0.5% | 0.25% - 0.5% |
Resolution | 3mm or 0.1%（greater） | 3mm or 0.1%（greater） |
Display | Chinese and English LED | Chinese and English LED |
Analog output | Four-wire 4～20mA / 510Ω load Two-wire 4～20mA / 250Ω load | 4～20mA / 510Ω load |
Relay output
| Two groups: AC 250V / 8A or DC 30V / 5A Status can be programmed | Two groups for single channel Four groups for double channels AC 250V / 8A or DC 30V / 5A Status can be programmed |
Power supply | Standard: 24VDC Optional: 220V AC + 15% 50Hz | Standard: 220V AC + 15% 50Hz Optional: 24VDC or 120mA Customized: 12VDC or battery |
Environment Temperature | LED : -20～+60℃ Probe : 20～+80℃ | LED: -20～ +60℃ Probe: 20～ +80℃ |
Communication | Option: 485, 232 Communication (manufactures protocol) | Option: 485, 232 Communication (manufactures protocol) |
Protection class | LED: IP65 Probe: IP68 | LED: IP65 Probe: IP68 |
Cable probe | No | standards: 10m, max up to 100m |
Probe installation | According to the range and the probe type | According to the range and the probe type |
Power Consumption | Split type Power supply: 24V No relay: 100mA Channel 1 of Relay: 120mA; Channel 2 of Relay: 145mA; Channel 3 of Relay: 170mA; Channel 4 of Relay: 190mA; The specific power as follows: No relay: 24 × 100mA=2.4W; Channel 1 of Relay: 24 × 120mA=2.9W; Channel 2 of Relay: 24 × 145mA=3.5W; Channel 3 of Relay: 24 × 170mA=4.1W; Channel 4 of Relay: 24 × 190mA=4.6W; |
Power Consumption | Integrated type (four-wire system) Power supply: 24V, No relay: 80mA Channel 1 of Relay: 105mA; Channel 2 of Relay: 130mA; The specific power as follows: No relay: 24 × 80mA=1.9W; Channel 1 of Relay: 24 ×1 05mA=2.5W; Channel 2 of Relay: 24 × 130mA=3.1W; |
Power Consumption | Integrated type(two-wire system) Power supply: 24V, No relay: 30mA The specific power as follows: No relay: 24 × 30mA=0.72W |
