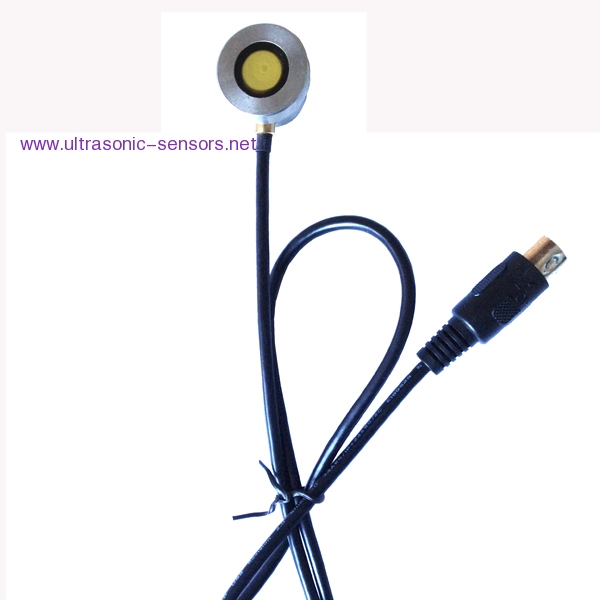

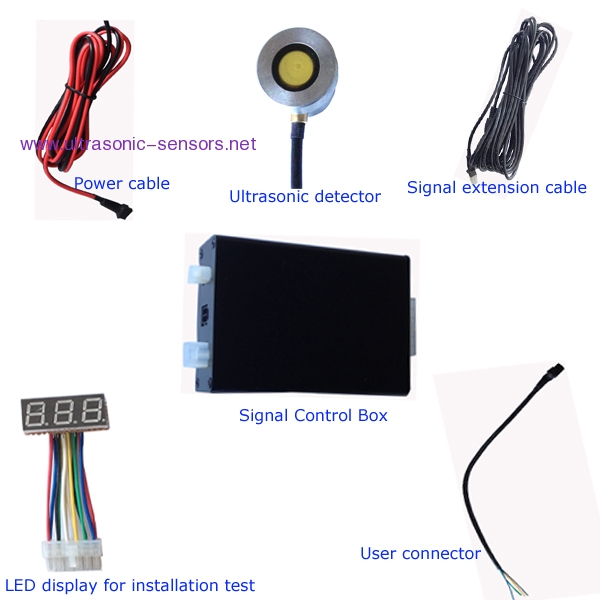

Ultrasonic fuel sensors with GPS tracker
Application:
Ultrasonic fuel sensor is geared to all kinds of vehicles, such as logistics cars, taxis, buses, commuter trains, etc.
Advantages:
● Using non-contact ultrasonic measuring technology;
● Monitor fuel situation in real time to prevent the oil theft and guarantee traffic safety;
● High measuring accuracy and high stability;
● Resistant to corrosion;
● Anti-pollution and anti-explosion, easy installation.
Technical Parameters
Working Voltage: 9-36V 50mA
Measure Range: 5cm-200cm(custom Max 2M)
Operating Temperature: -40℃－80℃
Pressure Range: -0.1MPa~32MPa
Level Height Accuracy: 3mm
Level Measure Accuracy: technical 0.1L/practical 1L
Working Environment:
moisture-proof (detector),
acid-proof (detector),
anti-interference,
anti-explosion (detector),
flame retardant (detector),
anti-seismic (detector).
Device interface: RS232, analogue output
Voltage sampling port: output voltage range: 0.10~6.0V
Computational formula for actual liquid level and voltage output:13311.3*Vx+176 (unit: 0.1mm)
RS232 port:
the default baud rate 19,200, each 10s interval sensors measured fluid level in real time (unit 0.1mm), temperature (unit 0.1℃). Baud rate according to user needs to modify, and transmit data time interval.
Connection:
Yellow wire: connect RS232 output port of gps tracker;
Blue wire: connect RS232 input port of gps tracker;
Green wire: connect analog wire of gps tracker;
Black wire: connect earth
