Rear view mirror parking sensor system
Applications:
It is used for car / truck for parking.
Technical parameter:
Constitues:

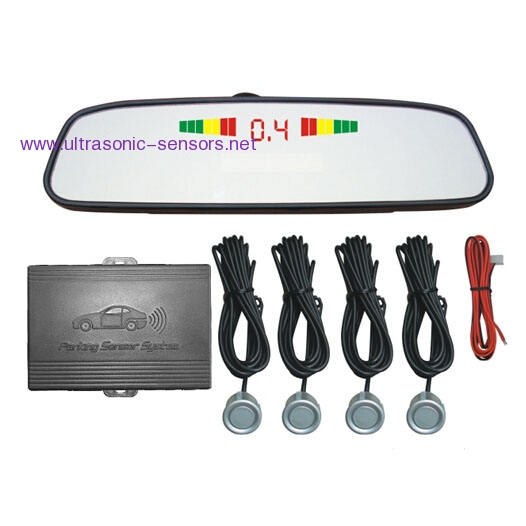

1control box,4 sensors,1 rear-view mirror, a string of power lines
Function :
A. buzz indication
(1) 1.50m—0.80m: Bi, Bi, Bi
(2) 0.80m—0.40m: Bi, Bi, BiBi (the closer, the faster)
(3) 0.40m—0.00m: BiBi…(continuous beeping)
B. visual indication
(1) 2.5m—0.3m: display the distance accurately
(2) 0.3m—0.0m: display 00 and you must stop
(3) seven sects lights in three colors(green denotes safe, yellow denotes warning, red denotes stop), two sides lights indicate the orientation of obstacles, the two-figure number indicates the distance between obstacle and vehicle.
Specification :
Working voltage: (1)10V ~ 15V; (2)24V
Working current: ≤ 200mA
Max Power: ≤ 4W
Ultrasonic frequency: 40KHz
Working temperature: -30℃ ~ +70℃
Alarming volume: ≥ 63dB
Alarming distance:1.50 ~ 0.10m
Display distance: 2.50 ~ 0.30m
