LCD monitor parking sensor system
Applications:
It is used for car / truck for parking.
Technical parameter:
Constitues:

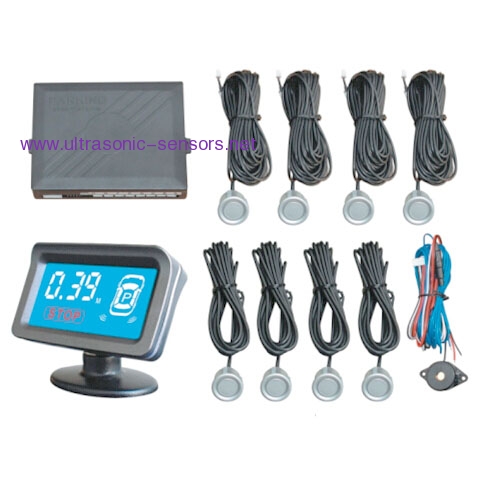

1 control box, 4 front and 4 rear sensors, 1 LCD monitor, 1 buzzer with power lines
Function :
When electrify vehicle, the front sensors start working, detect distance within 2.50m
When reverse gear is engaged, it will switch to the rear sensors to work as follows
A. buzz indication
(1) 1.50m—0.80m: Bi, Bi, Bi
(2) 0.80m—0.40m: Bi, Bi, BiBi (the closer, the faster)
(3) 0.40m—0.00m: BiBi…(continuous beeping)
B. visual indication
(1) 2.50m—0.30m: three-figure number indicates distance
(2) 0.30m—0.00m: display 000 on screen
(3) twinkling under lines indicate the orientation of obstacles
Specification :
Working voltage: (1)10V ~ 15V; (2)24V
Working current: ≤ 150mA
Max Power: ≤ 4W
Ultrasonic frequency: 40KHz
Working temperature: -30℃ ~ +70℃
Alarming volume: ≥ 85dB
Alarming distance:1.50 ~ 0.10m
Display distance: 2.50 ~ 0.30m
