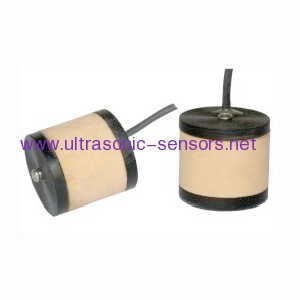

75KHz Φ31mm ultrasonic horizontal-omnidirection transducer
Applications:
People Detection
Automated Store Displays
Booths & Kiosks
Lithium Battery Applications
Solar Powered Applications
Remote Monitoring Stations
Non-Contact Detection
Shipping systems
Mobile Robotics
Chemically Hazardous Locations
Tank Level Measurement
Freight Management Systems
Liquid Level Control
Tide/Water Level Monitoring
Dimensioning & Positioning
Proximity Detection
Security Systems
Features:
*Rugged sealed contruction
*Cylindrical design for easy installation
*Short-range measuring capability
Technical parameter:

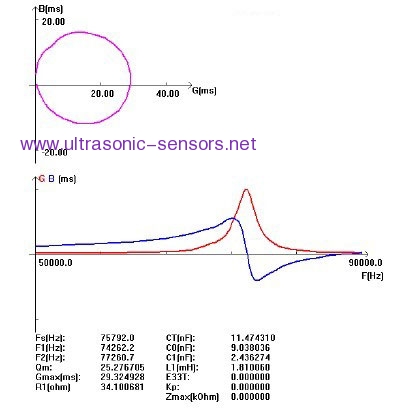

Center Frequency: 75 ± 5KHz
Working Voltage: Crest voltage ≤ 600Vpp
Working temperature: -20～+80℃
Pressure: 1.01325×10^5Pa
Angle: Horizontal Omnidirectional
Detectable range: 2.5m
Protection Class: IP67
Housing Material: ABS
Corrosion Resistance: Can be used under the environment of weak acid or weak base

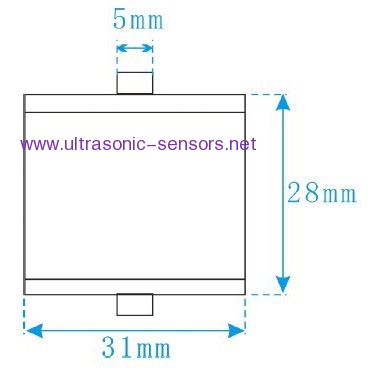

Installation dimensions: 31mm outer dimension
