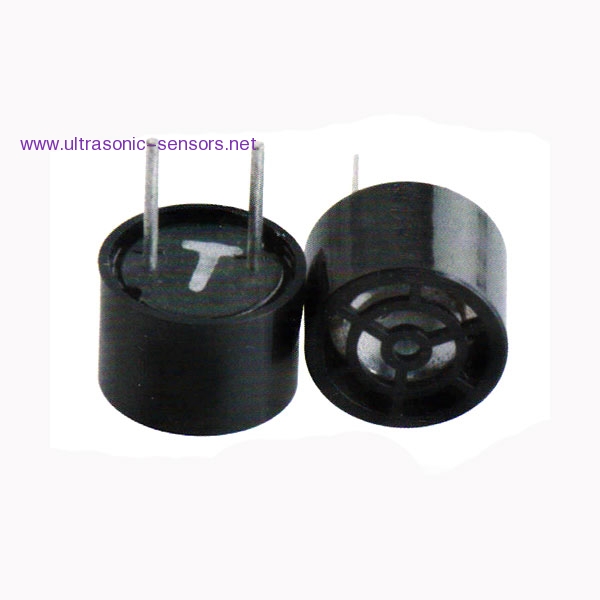

40KHz Φ16mm ultrasonic transducer
Applications:
People Detection
Automated Store Displays
Booths & Kiosks
Lithium Battery Applications
Solar Powered Applications
Remote Monitoring Stations
Non-Contact Detection
Shipping systems
Mobile Robotics
Chemically Hazardous Locations
Tank Level Measurement
Freight Management Systems
Liquid Level Control
Tide/Water Level Monitoring
Dimensioning & Positioning
Long Range Object Detection
Proximity Detection
Security Systems
Features:
*Open structure and fission
*Compact and light weight
*High sensitivity and sound pressure
*Less power consumption
*High reliability
Technical parameter:
Construction: open structure
Using Method: transmitter / receiver
Center Frequency: 40 ± 1.0KHz
Sound Pressure Level: 110 dB min. (10v/30cm)
Sensitivity: -65dB min./V/μ bar
Capacitance: 2500pF ± 25% at 1KHz
Directivity: 50 degree
Detectable range: 0.7 ~ 18m
Housing Material: ABS
