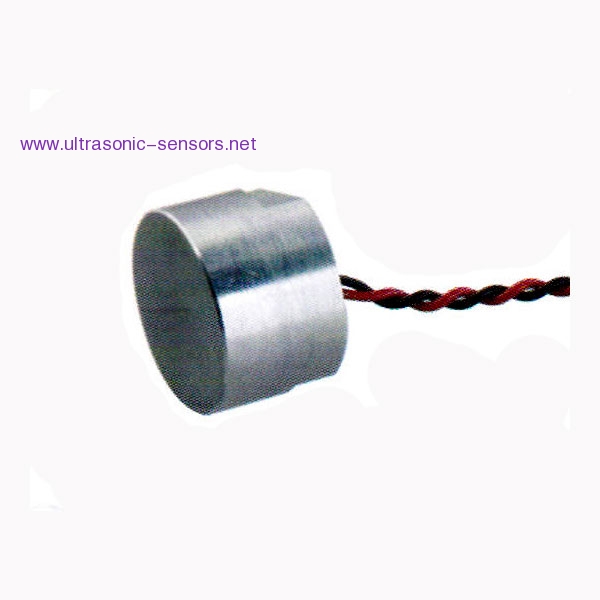

40KHz Φ14mm dual use waterproof transducer
Applications:
People Detection
Automated Store Displays
Booths & Kiosks
Lithium Battery Applications
Solar Powered Applications
Remote Monitoring Stations
Non-Contact Detection
Shipping systems
Mobile Robotics
Chemically Hazardous Locations
Tank Level Measurement
Freight Management Systems
Liquid Level Control
Tide/Water Level Monitoring
Dimensioning & Positioning
Proximity Detection
Security Systems
Features:
*Waterproof and dual use
*Compact and light weight
*High sensitivity and sound pressure
*Less power consumption
*High reliability
Technical parameter:
Construction: waterproof
Using Method: dual use
Center Frequency: 40 ± 1.0KHz
Sound Pressure Level: 97 dB min. (10v/30cm)
Sensitivity: -75 dB min./V/μ bar
Capacitance: 2100pF ± 25% at 1KHz
Directivity: 110 x 50 degree
Housing Material: aluminium
