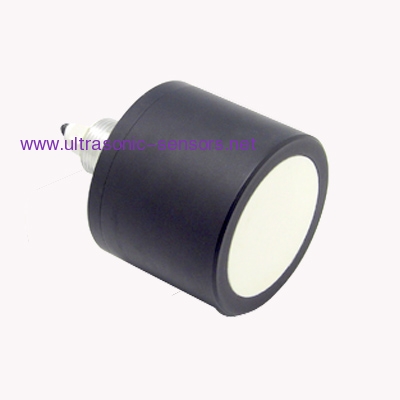

30KHz Φ90mm 20m ranging ultrasonic transducer
Applications:
Lithium Battery Applications
Solar Powered Applications
Remote Monitoring Stations
Non-Contact Detection
Shipping systems
Mobile Robotics
Chemically Hazardous Locations
Tank Level Measurement
Freight Management Systems
Liquid Level Control
Tide/Water Level Monitoring
Dimensioning & Positioning
Proximity Detection
Security Systems
Gas flow meter
Features:
*Rugged sealed contruction
*Cylindrical design for easy installation
*Long-range measuring capability
Technical parameter:
Construction: waterproof
Using Method: dual use
Center Frequency: 30 ± 2.0KHz
Capacitance: 7000pF ± 20% @1KHz
Sensitivity: -65 dB min.
Max. Input Voltage: ≤ 1800Vpp
Working temperature: -40 ~ + 80℃
Directivity deg: 14°±2° (-6dB)
Detectable range:0.6~20m
Protection Class: IP65
Housing Material: plastic
