1MHz Φ10mm ultrasonic battery-solution concentration measuring transducer
Applications:
Ultrasonic flow meter, under water range detection, liquid concentration and density measurement etc
Features:
*Rugged sealed contruction
*Cylindrical design for easy installation

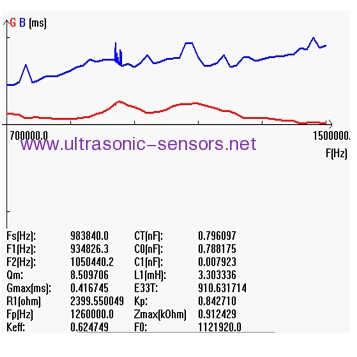

Technical parameter:
Center Frequency: 1M ± 30KHz
Detectable range: 0.1 ~ 1m
Mini. parallel Resistance: 2400 Ω ± 20%
Capacitance: 800pF ± 20% @1KHz
Echo Sensitivity: 100mV echo amplitude @0.6m, under 200Vpp
Working Voltage: Crest voltage < 600Vpp
Working temperature: -40 ~ +80℃
Pressure: ≤3Kg or 0.3MPa
Angle: Half-power angle @-3dB: 12° ± 1, Sharp Angle: 26° ± 4
Housing Material: POM
Corrosion Resistance: can be used under the environment of weak acid or weak base

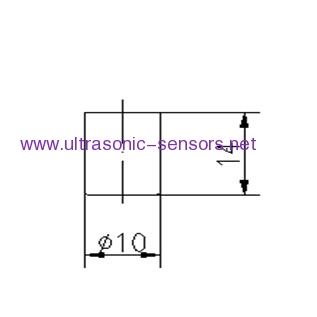

Installation dimensions: 10mm
Protection class: IP68
Wiring instructions: contact for more details
