3. Structure of Ultrasonic Transducer
Open structure ultrasonic transducer

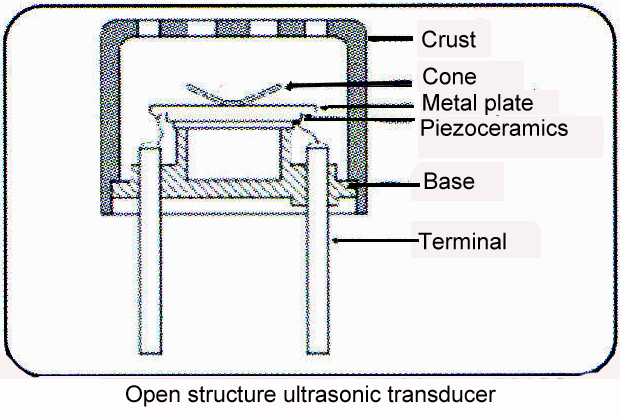

As the right figure shows, a compound oscillator is fixed on the base flexibly. The compound oscillator is a conjunct object that is made from cone, piezoceramics and a metal plate. The oscillator looks like a loudspeaker, it can radiate ultrasonic wave that the compound oscillator vibrates to produce effectively, and can get ultrasonic wave in the centre of the oscillator together effectively.
Waterproof type ultrasonic transducer

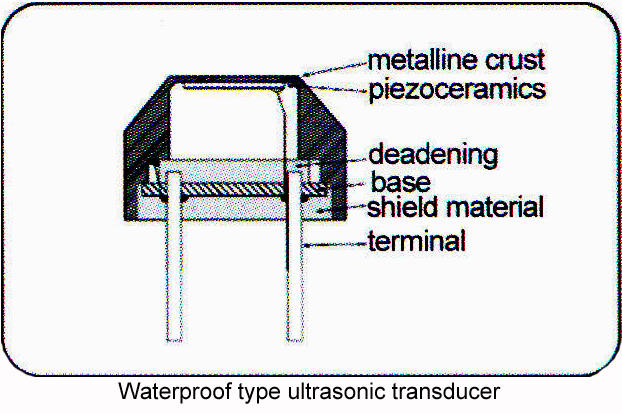

The ultrasonic transducer using outdoor must be better sealed so that prevent dew, rain and dust from the outside. The piezoelectric ceramic is fixed inside top of a metal box, the base is fixed in the hatch of the metal box, and covered with the resin, see the right illustrated drawing.
